All Specifications

Specifications

BTC Standard

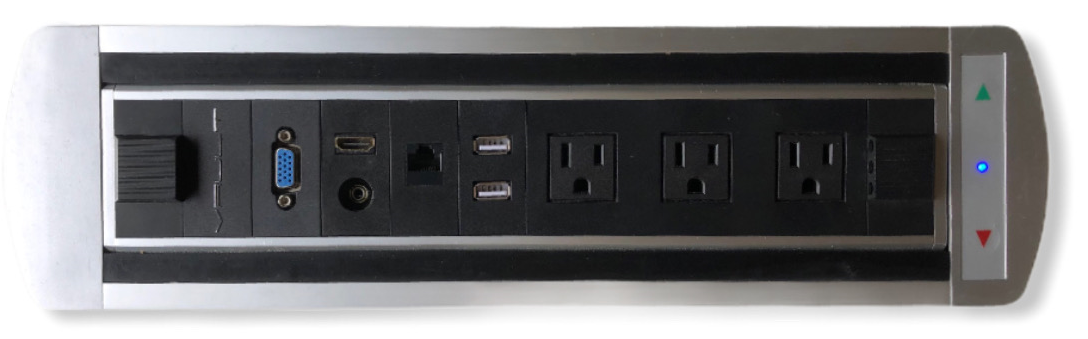

BTC Standard spec drawing

Configuration Options

Large: Three power outlets
Large: Two 5V USB charging ports
Large: One RJ-45 Cat6 data port
Large: One DE-15 VGA connector
Large: One HDMI connector
Large: One 3.5mm audio jack
Small: Two power outlets
Small: Two 5V USB charging ports

Technical Specifications

Specification Large (9-Module) Small (5-Module)
Receptacles32
5V USB22
DataRJ-45 Cat6—
VGADE-15—
HDMIYes—
Audio3.5mm—
Cord Length4m / 12ft4m / 12ft
Overall Dimensions15.9" L × 4.325" W × 4.062" D11.740" L × 4.325" W × 4.062" D
Cut Size14.625" L × 4.063" W10.500" L × 4.063" W
ColorsSatin Aluminum · Matte BlackSatin Aluminum · Matte Black
